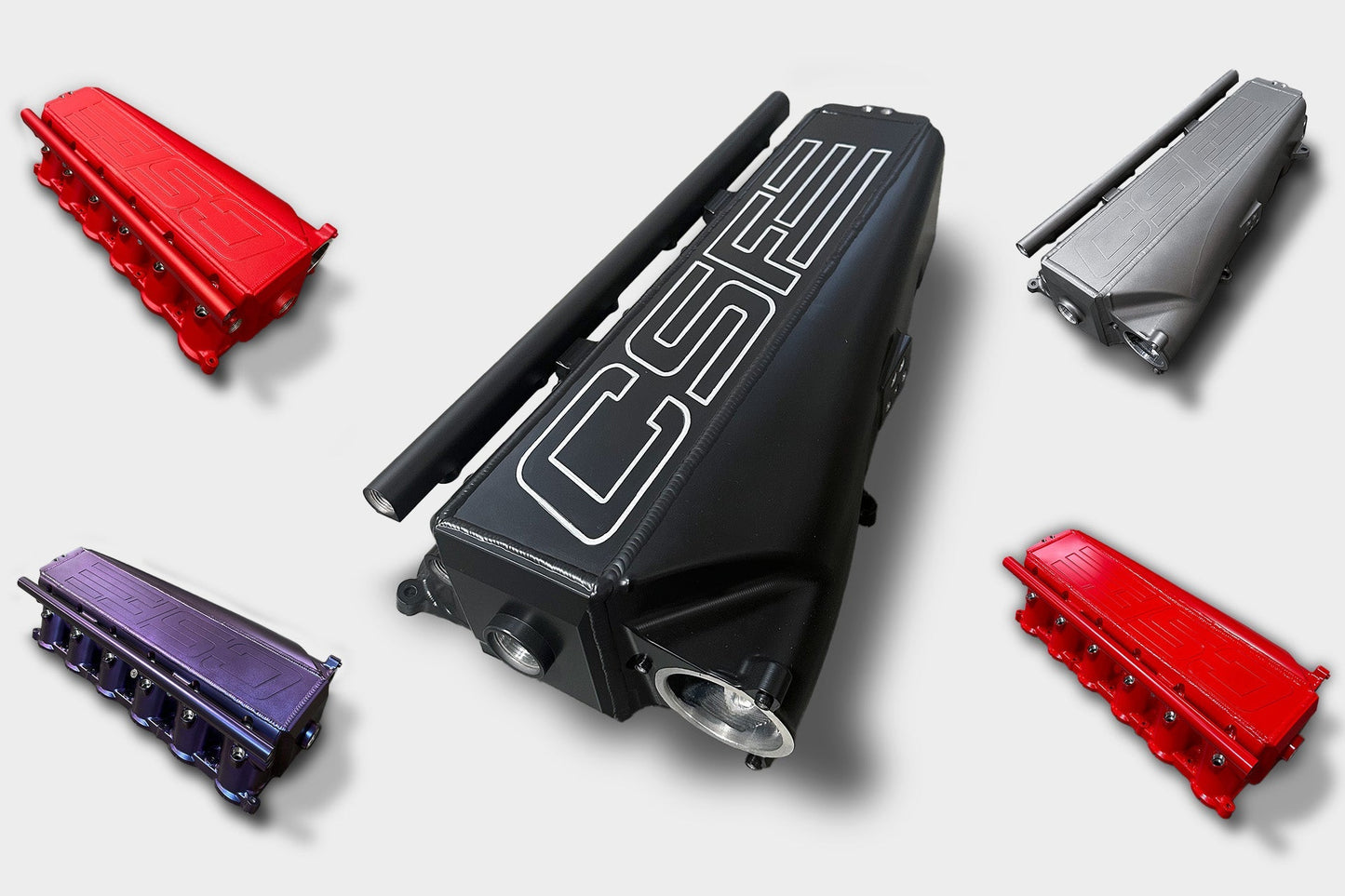

CSF BMW Gen 2 B58 Race X Charge Air Cooler Manifold - Custom Finish

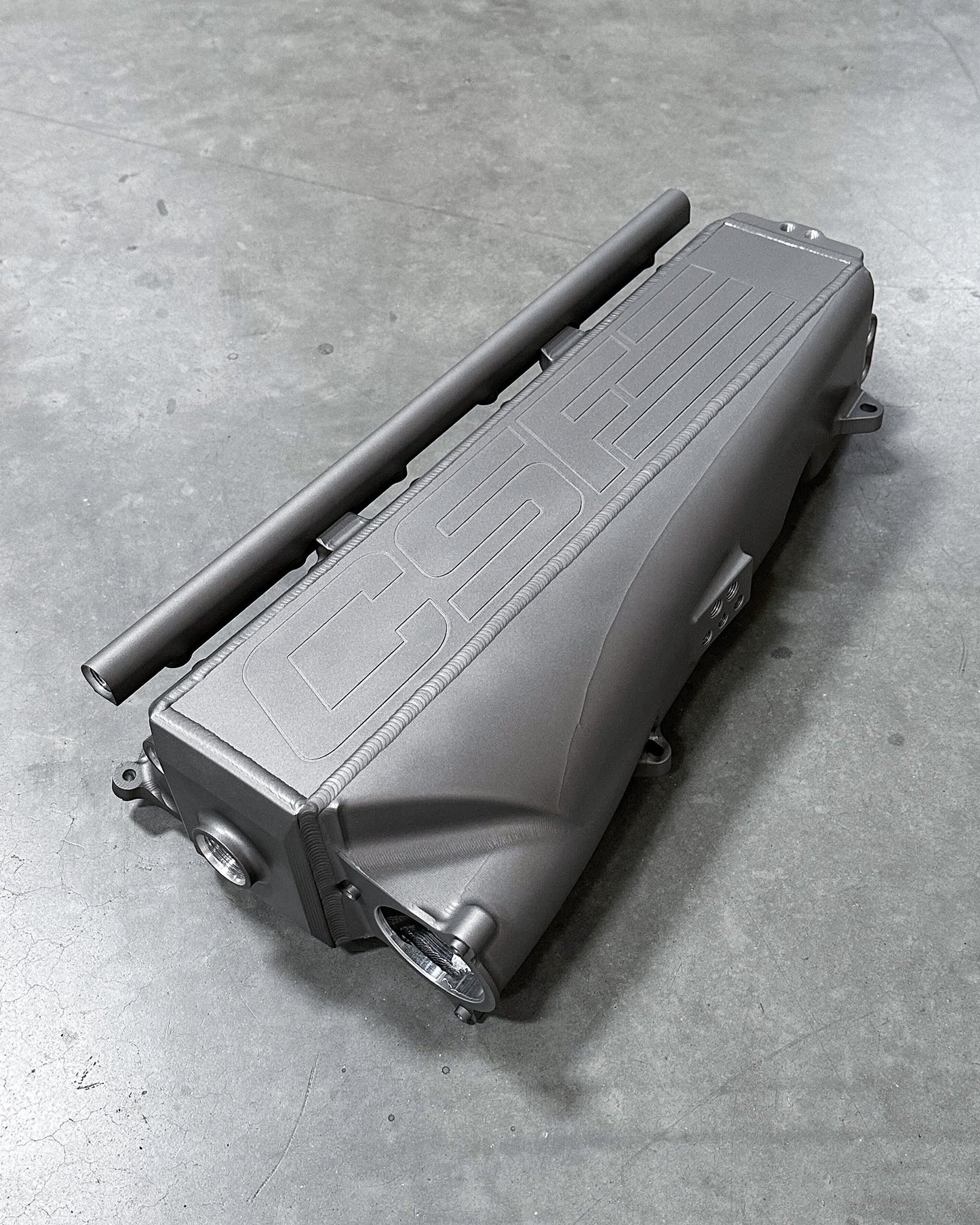

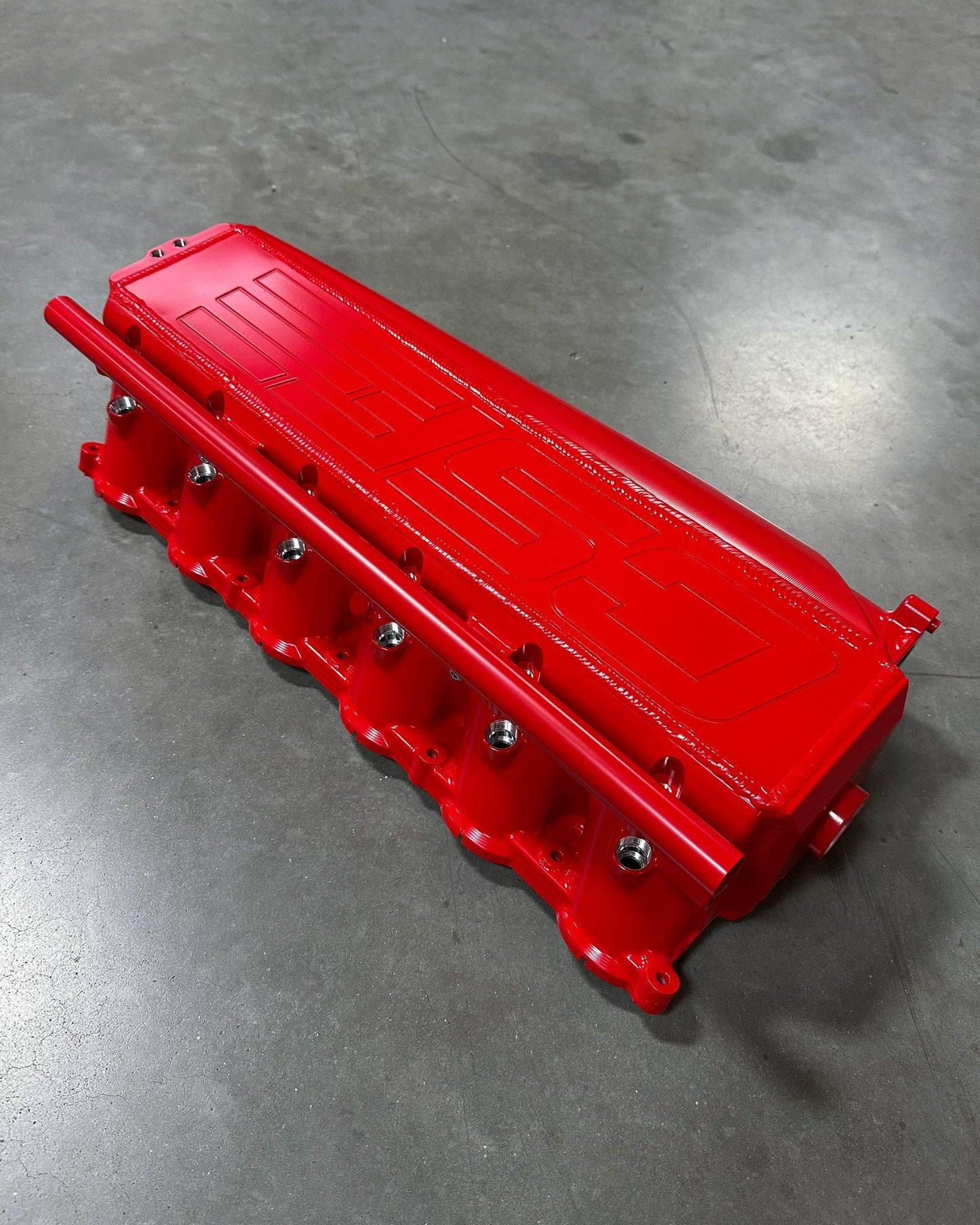

The Race X manifold is CSF's competition-focused step up from its already-popular Gen 2 B58 "Super Manifold," built for cars pushing well past the 1000hp mark. It uses a Bar/Plate charge-air-cooler core roughly 25% larger than the standard Super Manifold, with 15 water-cooling rows versus 12, and a front water plate that can be configured for single-pass, dual-pass, or ice-box setups using the largest ORB fitting available on any aftermarket B58 manifold. Real-world A/B testing at the drag strip showed the Race X core running well over 100% more efficient at cooling charge air than a competitor's manifold under matched conditions. It ships with a top-feed port injection fuel rail, individual nitrous/methanol ports, an expanded sensor/vacuum pad, and a full hardware kit; this is a racing product intended for installation by an experienced technician familiar with the B58 platform. This listing is the Custom Finish option, built to order in your choice of CSF's powder-coat or specialty finishes. Note: does not fit the newer B58N (B58TU2/B58B30M2) engine.

This Part Fits:

Year	Make	Model	Submodel
2020-2026	Toyota	GR Supra	Turbocharged 3.0L L6
2020-2025	BMW	340i / 440i / 540i / 740i / 840i	Turbocharged 3.0L L6
2020-2026	BMW	M240i / M340i / M440i	Turbocharged 3.0L L6
2019-2026	BMW	X3/X4 M40i, X5/X6/X7 40i, Z4 M40i	Turbocharged 3.0L L6
