CSF BMW Gen 1 B58 Charge Air Cooler Manifold - Custom Finish

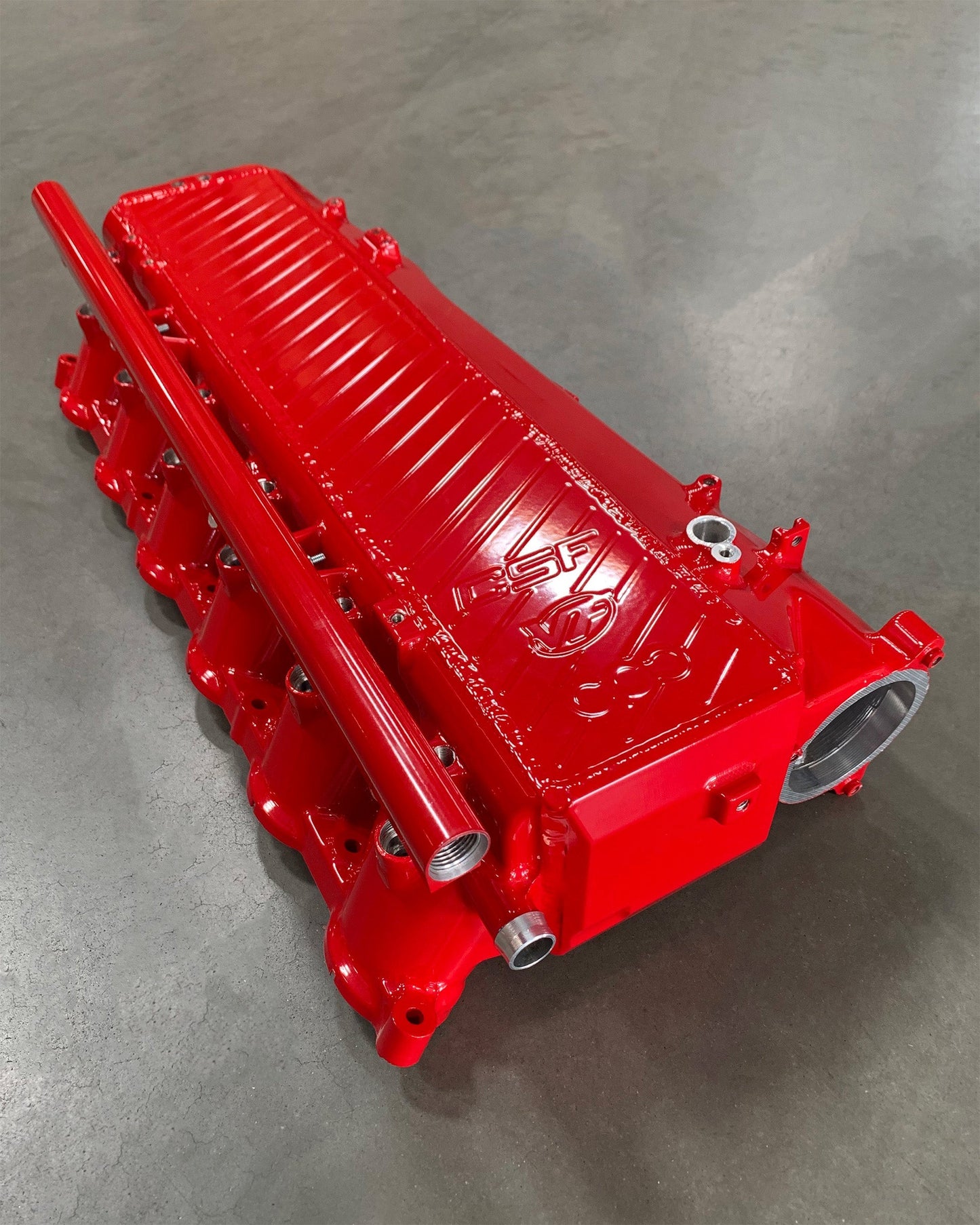

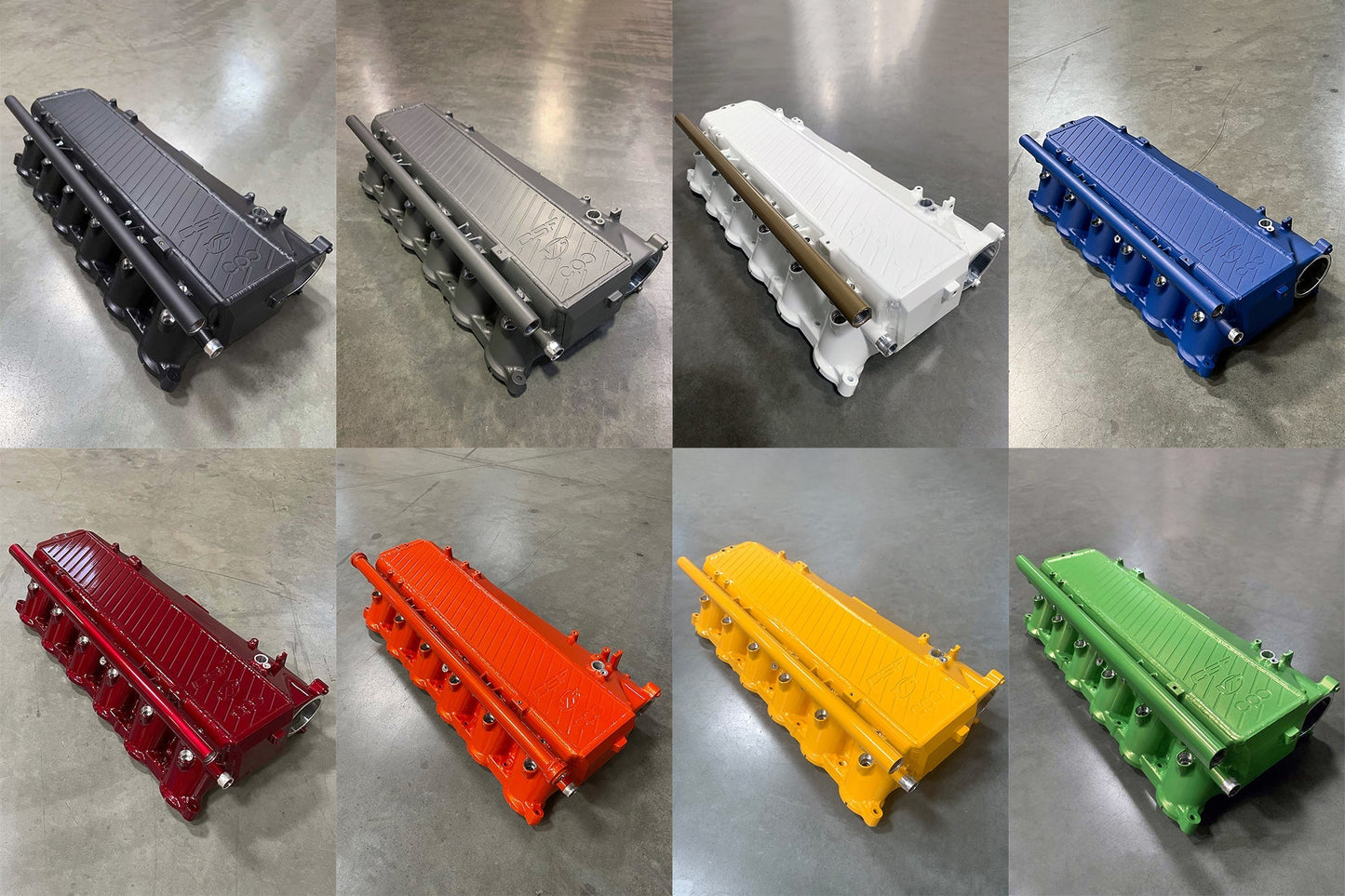

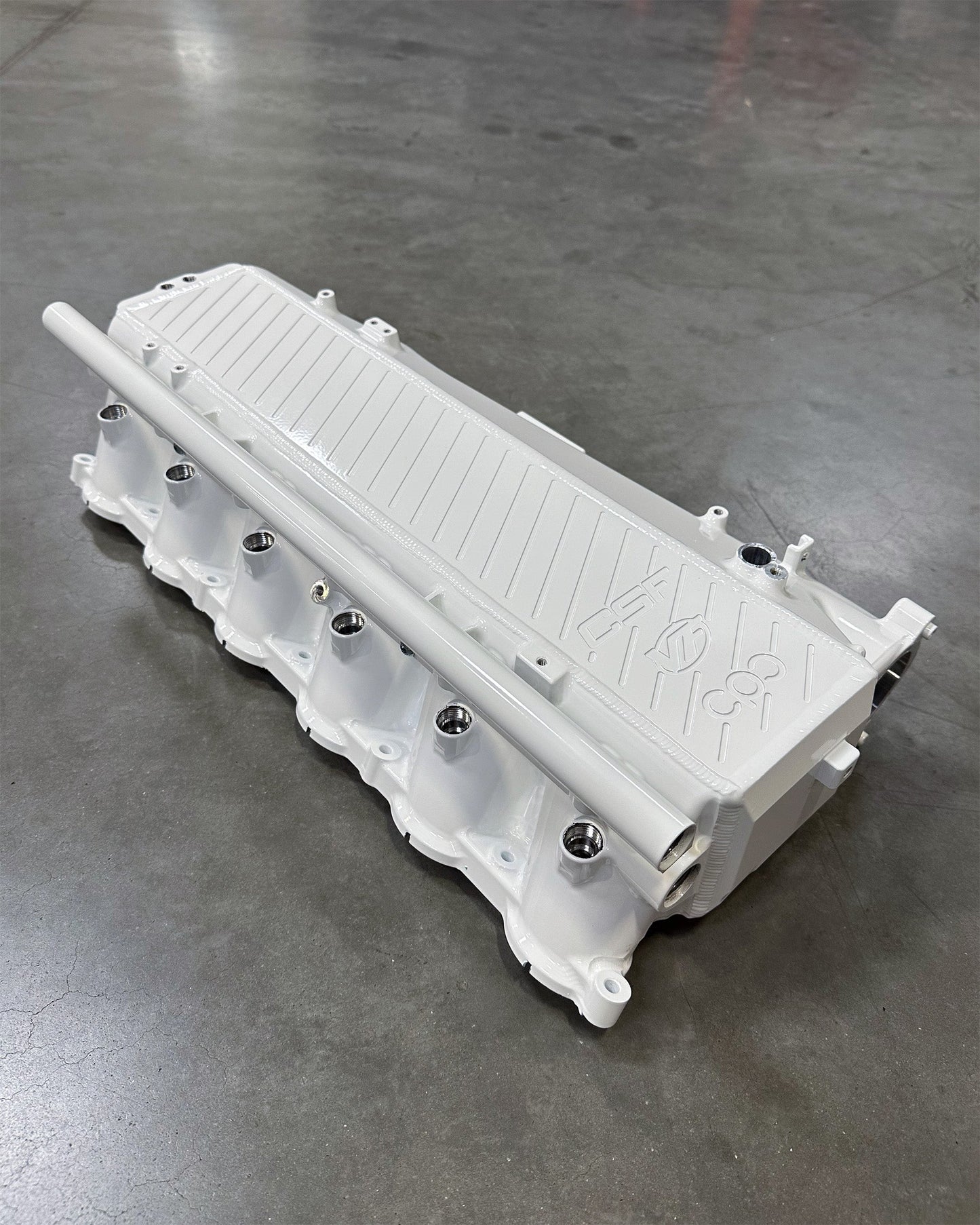

CSF adapted its proven Gen 2 B58 "Super Manifold" design to fit the earlier F-Chassis Gen 1 B58 platform, bringing the same motorsports-grade Bar/Plate charge-air-cooler core with double the water-cooling rows of the OEM core and a noticeably lower pressure drop. The 100% TIG-welded billet aluminum construction replaces the factory plastic manifold, which is prone to cracking at the crimped core-to-tank joint under higher boost. It ships with a top-feed port injection fuel rail, individual nitrous/methanol ports per cylinder, a sensor/vacuum pad, and a recessed, airflow-optimized design for easy oil filter access, plus a full hardware kit for a true plug-and-play install with no vehicle modification. This listing is the Custom Finish option, built to order in your choice of CSF's powder-coat, DLC, or specialty finishes.

This Part Fits:

Year	Make	Model	Submodel
2016-2018	BMW	340i	Turbocharged 3.0L L6
2017-2020	BMW	440i	Turbocharged 3.0L L6
2017-2019	BMW	540i / 640i xDrive GT / 740i	Turbocharged 3.0L L6
2017-2021	BMW	M240i	Turbocharged 3.0L L6
2017-2019	BMW	X3 M40i / X4 M40i	Turbocharged 3.0L L6
